Description:

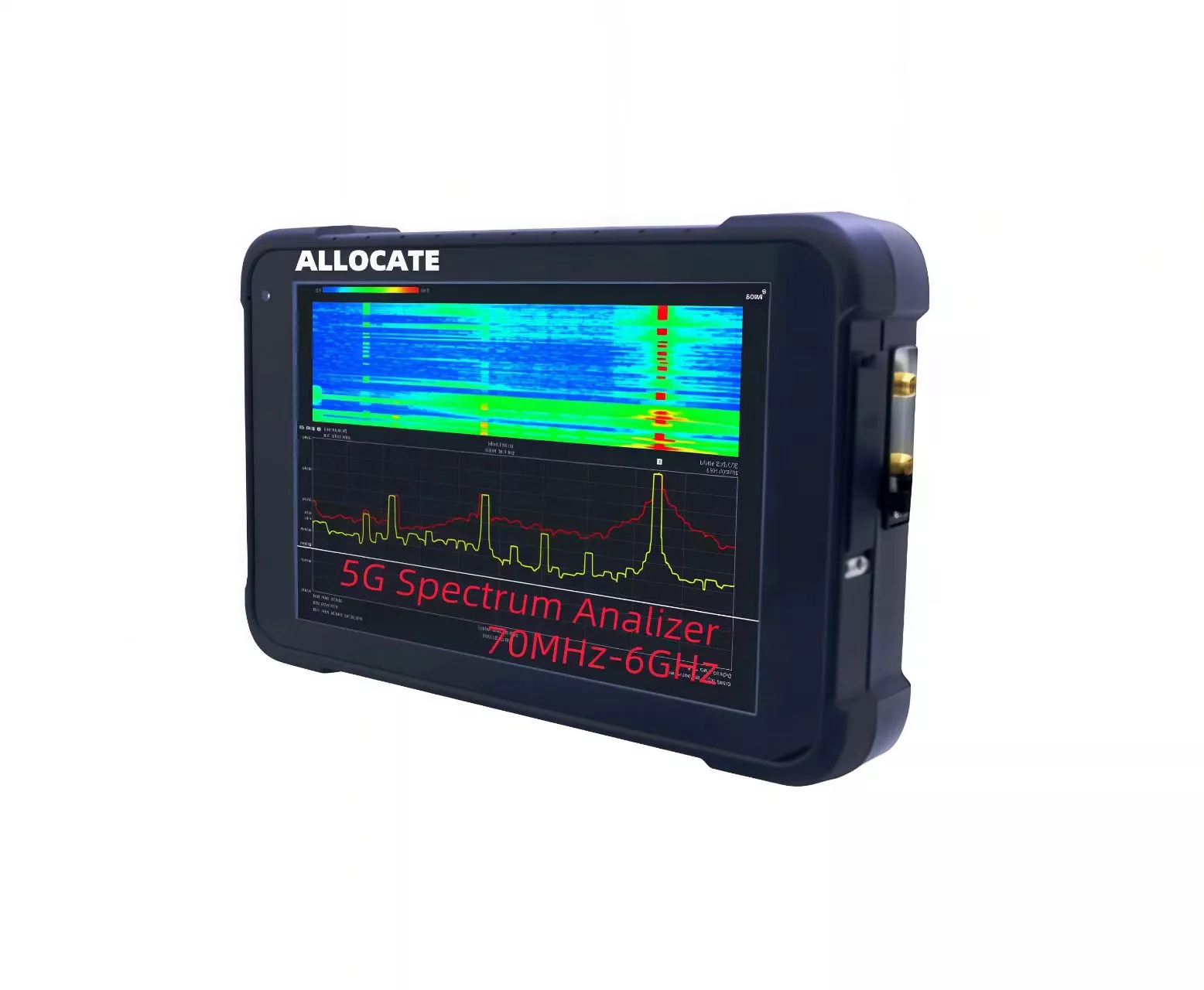

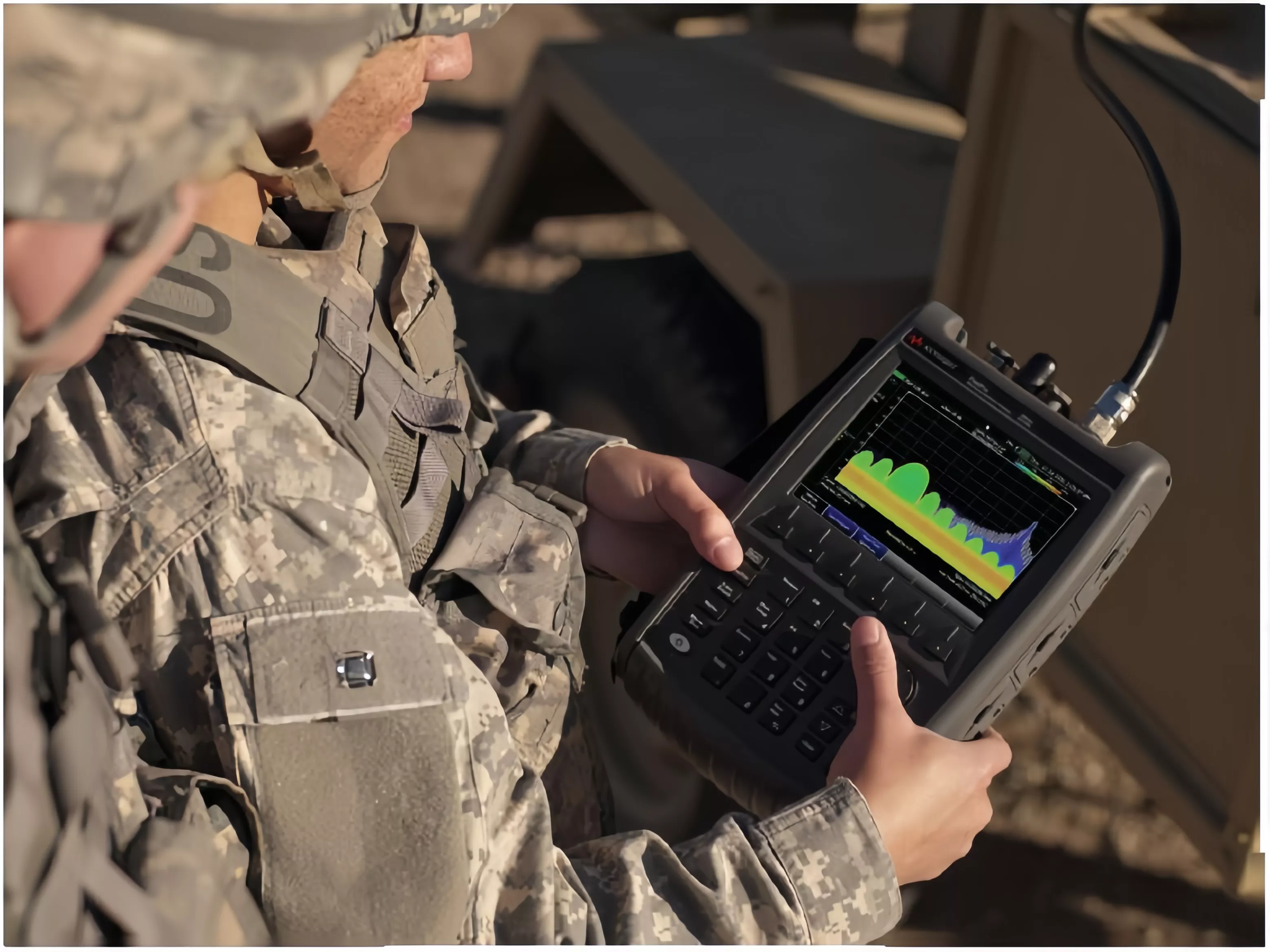

Allocate 5G Frequency Sweeper is a portable frequency sweeper, the frequency range supports 70MH z-6GH z (optional), with spectrum analysis, wireless signal direction finding and positioning, 5G NR parameter demodulation analysis and frequency sweeping, etc., it is a compact size, the use of Windows operating system operation is simple and flexible, and it is an excellent test performance to meet the requirements of the measurement and testing of radio signals.

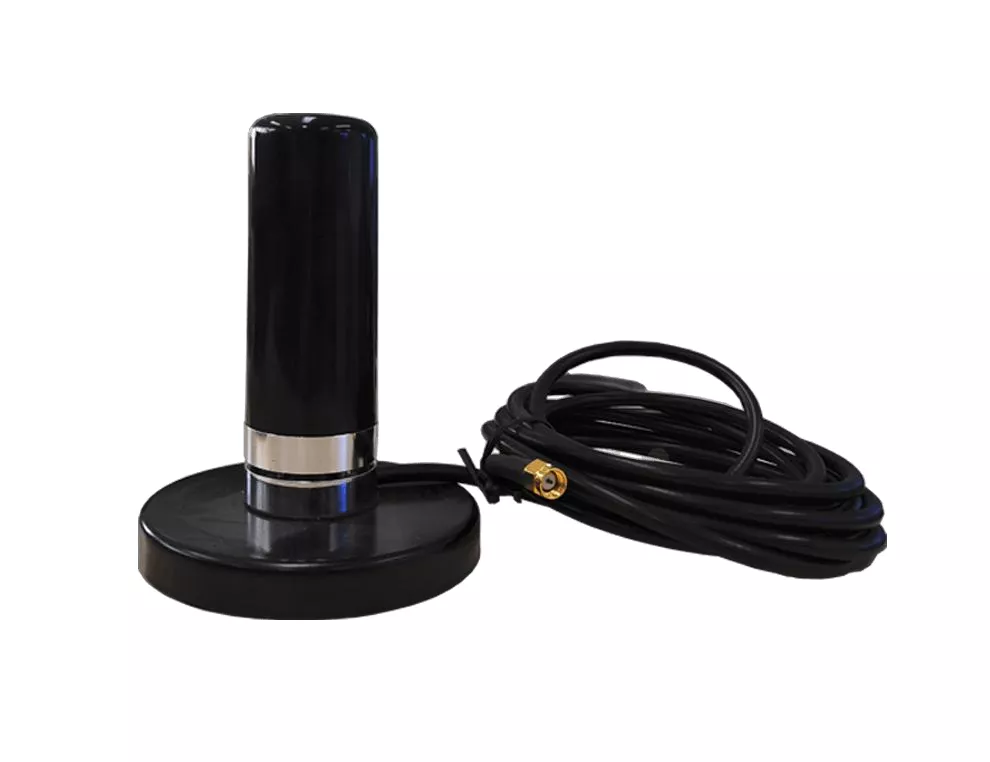

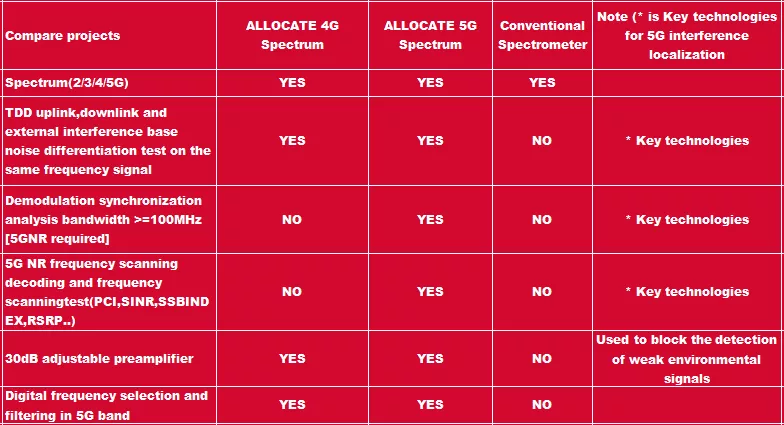

Weight <1.5kg, Antenna weight <0.5kg

Volume size: 25.5cm * 19cm * 4.5cm


Simple operation

Windows-based system, one-button setup for measurement,

Support remote control


Ultra-long endurance

Continuous use endurance of ≥6.5 hours


High sensitivity

30dB adjustable preamplification for blocking environment

Weak signal detection


Fast scanning speed

High-speed Scanning data update, real-time update of all parties bit data, 240000 channels/sec, identification

32uS instantaneous signal spectrum characteristics


Interference Measurement

One-touch measurement of different signal components of the same frequency of 5G NR, Independent distinction of the same frequency of the 100MHz external interference signals / Downlink Signal / Uplink Subscriber Signal


Frequency Range

Frequency Measurement Range: 70MHz-6GHz


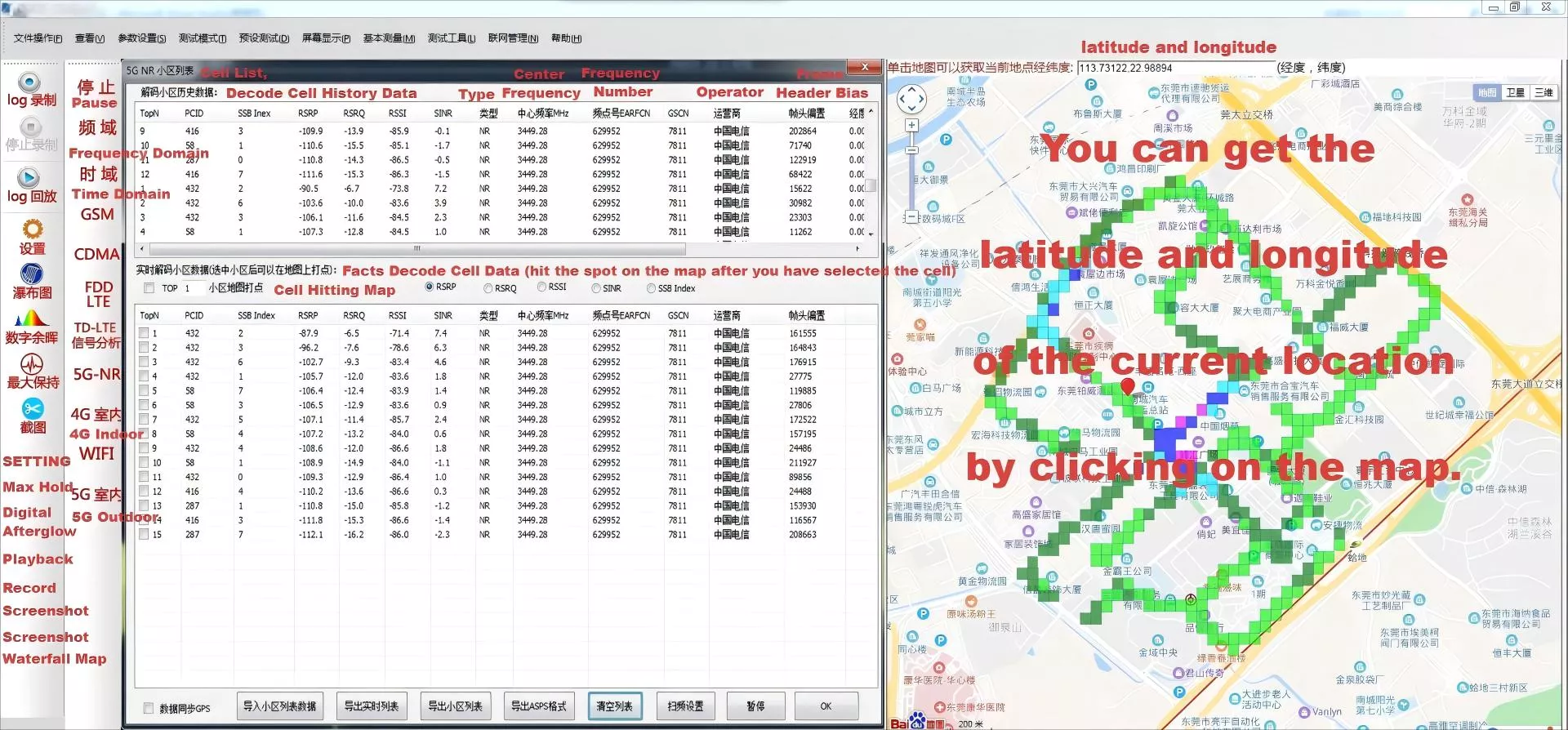

Decoder Test

5G NR Parameter demodulation analysis, including: PCI

(PHYSICAL CELL ID) CELL ID, SINR, RSRP, RSRQ, RSSI,

frequency offset, SSBindex

Project 1:
Interference Source Identification Process

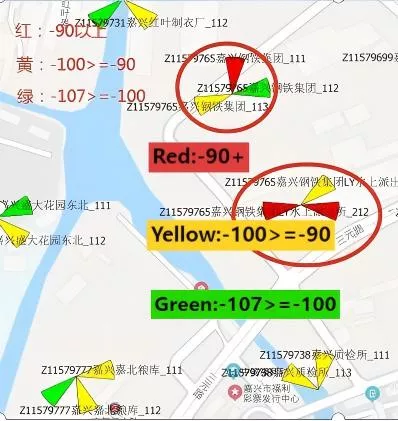

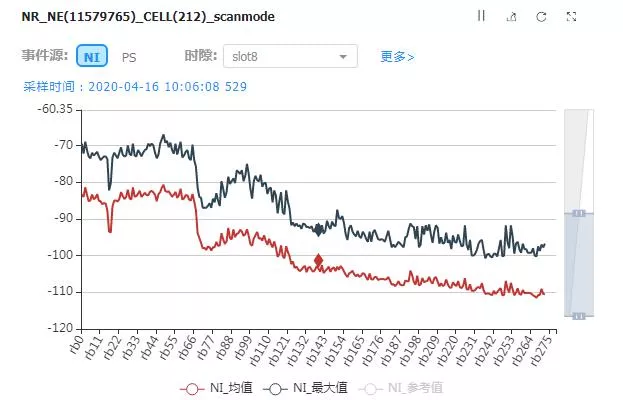

1.The background statistics PRB interference waveform.

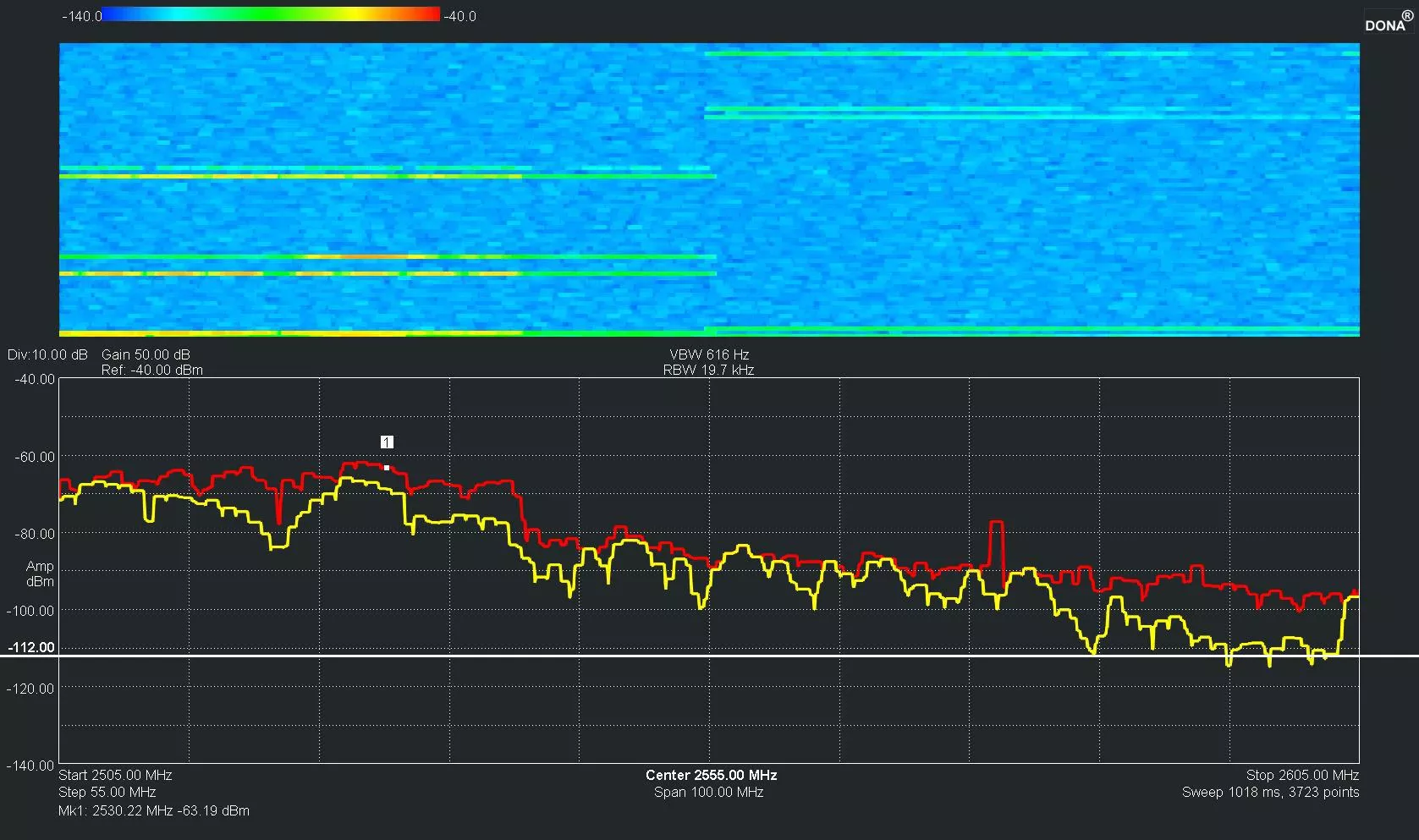

2.The instrument captures waveforms consistent with those of the background.

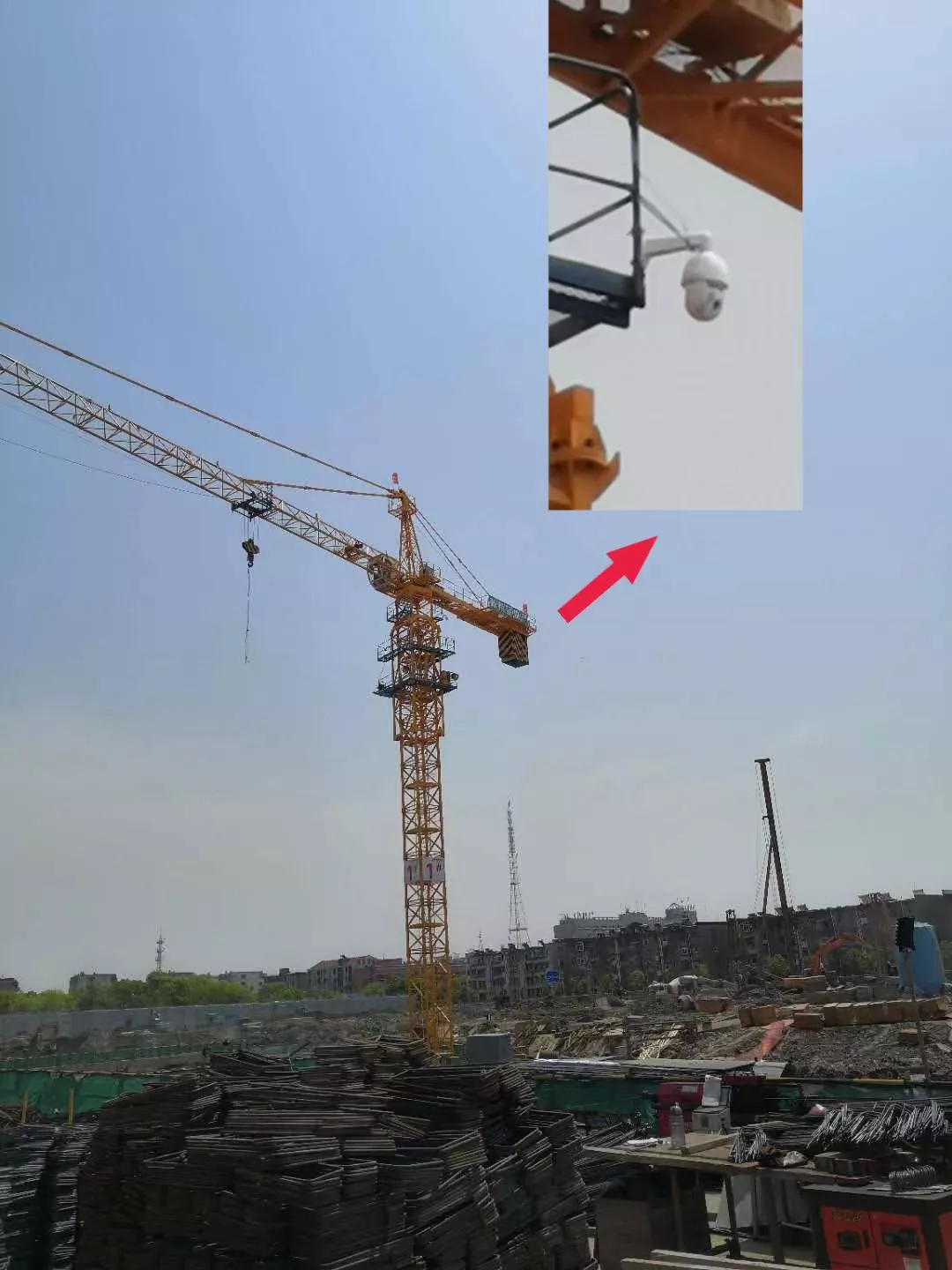

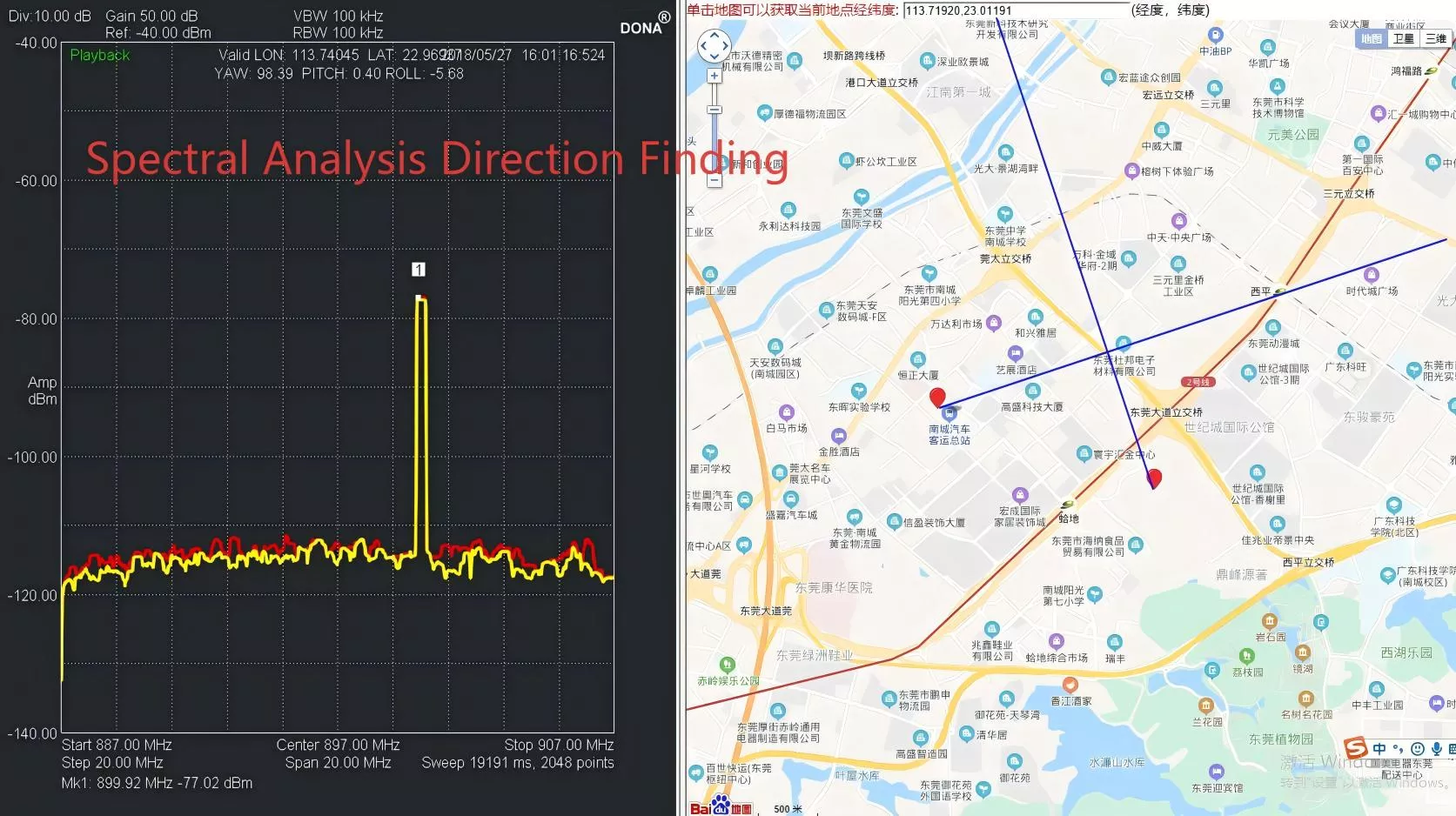

3.Locate the interference source, tower crane wireless monitoring interference.
4.On-site co-ordination and modification of frequency points.

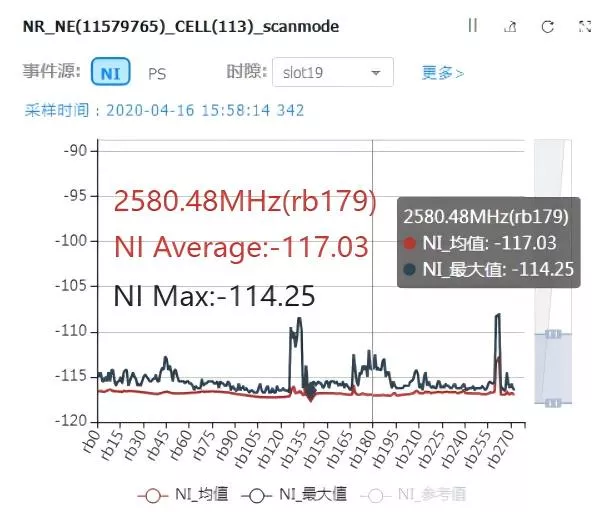

5.Wireless interference noise dropped to -117.03dBm.
6. About 15 residential neighbourhoods, interference elimination, all done.

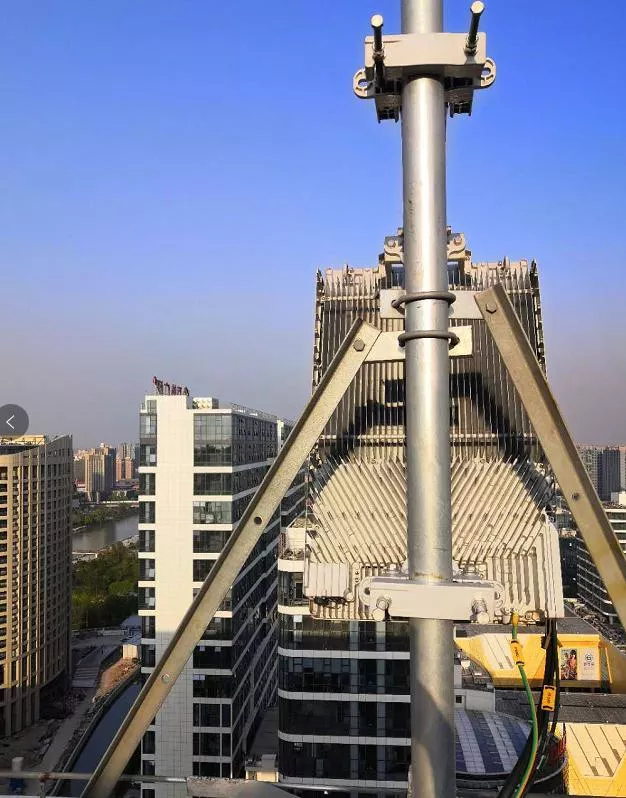

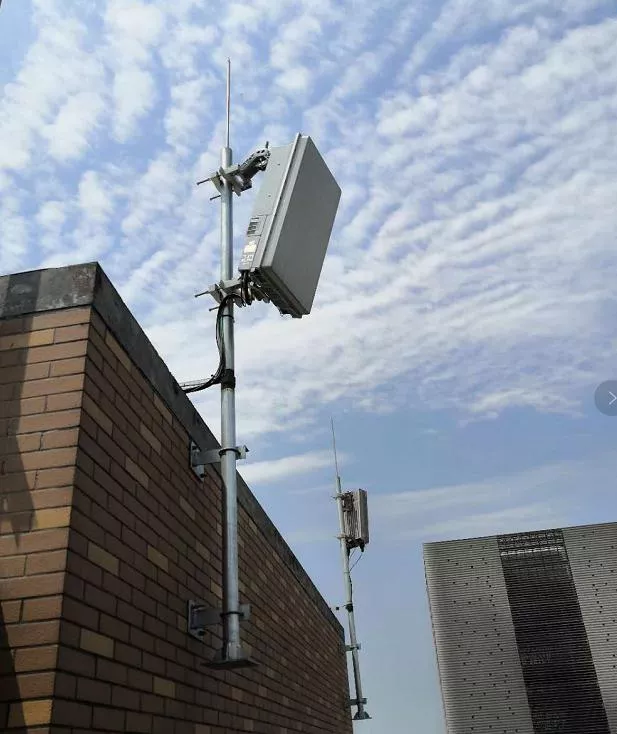

5G NR AAU
4G Wireless bridge interference in lifts
5G NR AAU

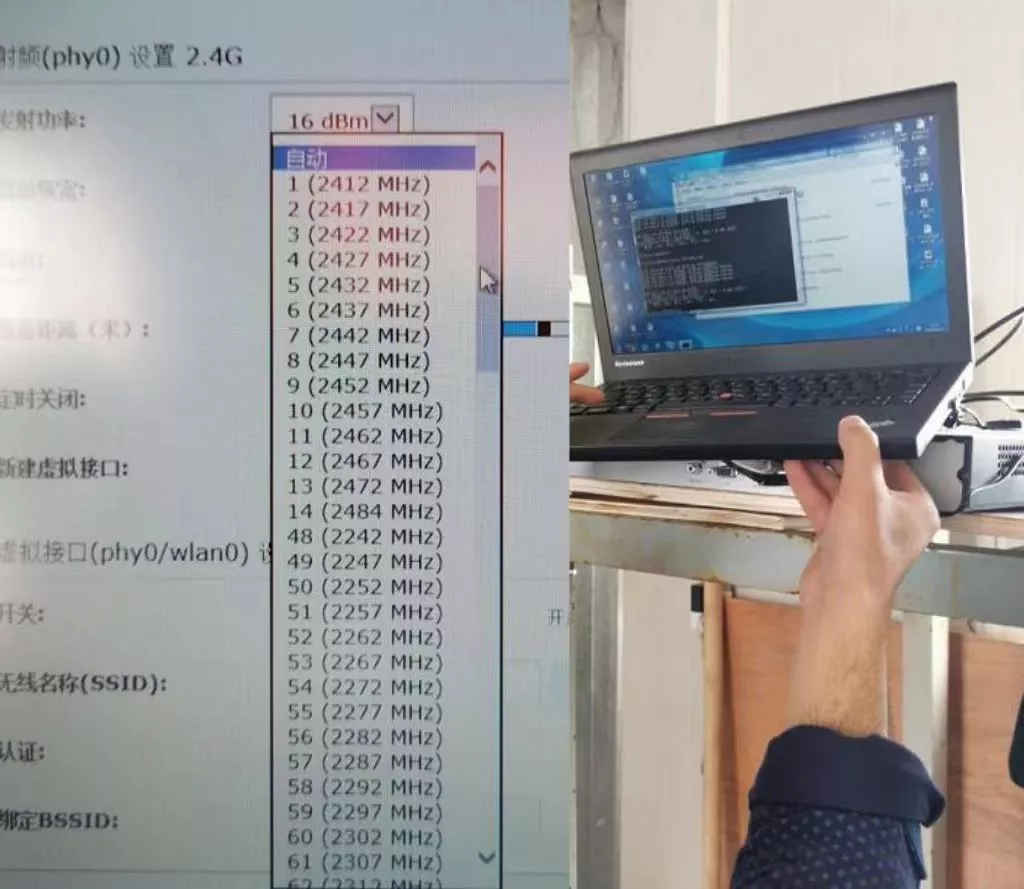

5G Wireless bridge interference in office
Project 2:
5G communication base station causing interference with C-band satellite earth station
1.Background
The 5G NR base station based on 3.5 GHz band uses the frequency range of 3 400 MH - 3 600 MHz, of which 3 400 MHz - 3 500 MHz is used by Telecom and 3 500 MHz - 3 600 MHz is used by Unicom. 3 600 MHz is used by Unicom. Currently, the 3 400 MHz-4 200 MHz spectrum is used by satellite earth receiving stations, and the 5G NR base stations in the 3.5G frequency band will cause same-frequency interference, neighbouring-frequency interference, or blocking interference.


2. Interference Overview
The satellite signals of the C-band of a city's satellite earth receiving station have been interfered with.



3. Allocate Interference Locating and Testing Process
Jointly with experts from various parties, the test plan is initially diagnosed to be related to 5G NR, and the test plan is determined as follows: NR related, to determine the test programme: coupled to connect the earth station antenna connecting line, linked to the use of Allocate 5G interference sweeper input, 5G TOP N decoding test (PCI/SSBIDEX/RSSI, etc.), decoding out the impact of the earth station, according to the order of the strength of the weak, and then one by one exclusion to eliminate the impact of the method.



4. Analysed and confirmed the interference through 5G NR CELL ID decoding tests.

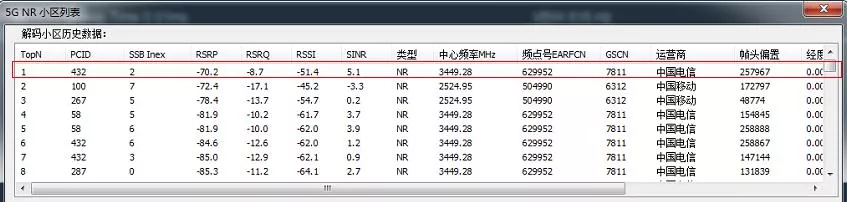

Meter 5G NR demodulation screenshot

Decoding analysis: Through decoding, we know that TOP1: PCID (432) and SSBInex (2) China Telecom 5G
NR interferes seriously with C fluctuating satellite signals




5. Solution

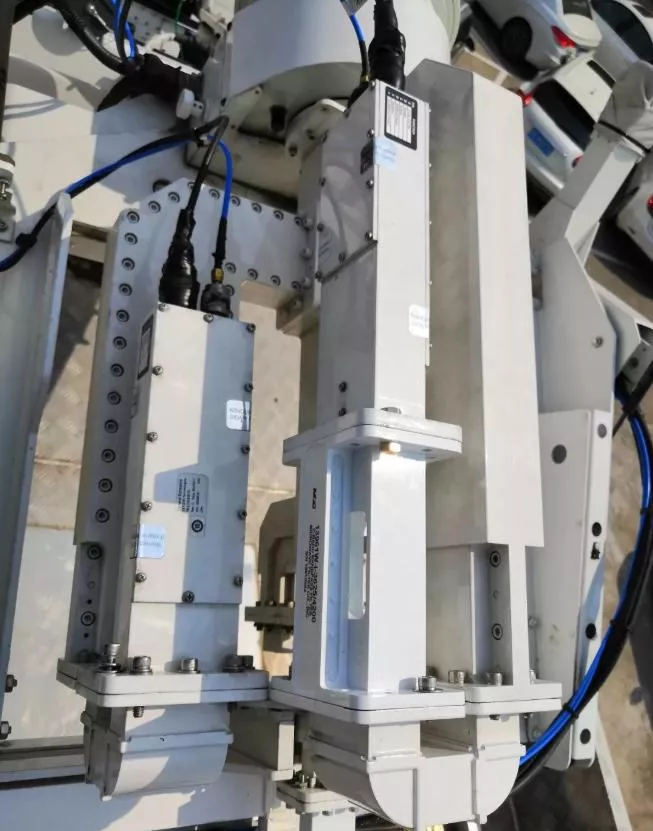

Solution:Installation of band-pass filter, the satellite signal interference is eliminated.
